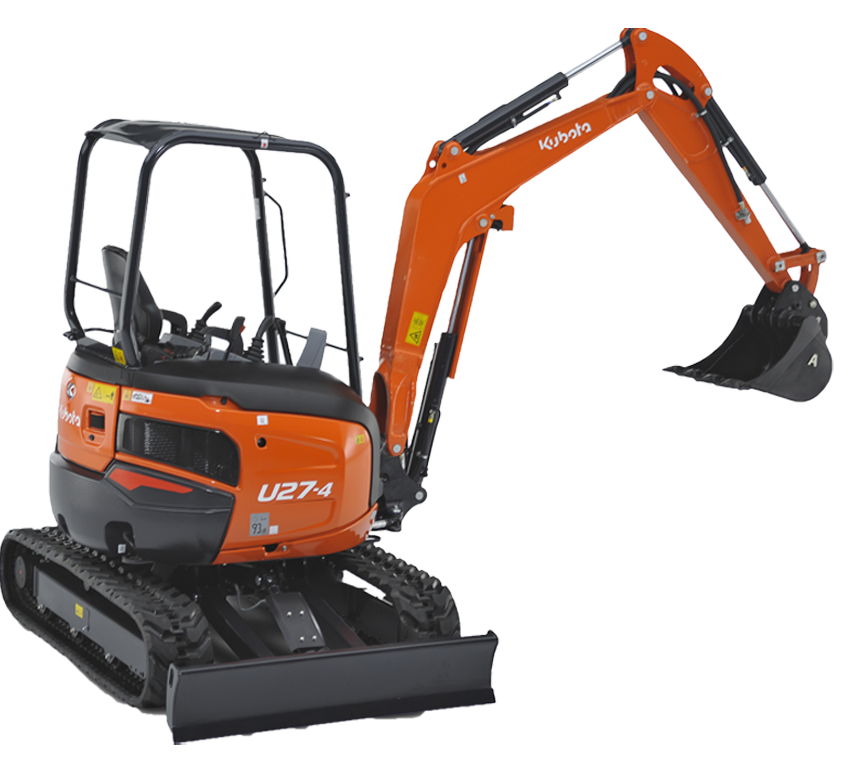

U27-4

Power, performance & precision.

The U27-4 has the largest cab among any 2.5 tonne mini excavator in the market. The extensive field of vision and a wider and lower entrance for easy cab entry and exit, the U27-4 makes light work of even the most demanding jobs.

Key Features

  • Machine Weight (kg) 2590/2490
  • Power ISO 14396 PS (kW) / rpm 20.9 (15.4) / 2400
  • Power ISO 9249 PS NET (kW) / rpm 20.3 (14.9) / 2400
  • Max Speed PS (kW) 4.5
  • Max Dig Depth (mm) 2820
  • Max Reach (mm) 4740
  • Max Digging Force Arm/Bucket (kN) 12.3/21.0
  • Aux Flow 1 48 l/min @ 175 kgf/cm2
  • Aux Flow 2 19.2 l/min @ 175 kgf/cm2
  • Overall width (mm) 1500
  • Transport height (mm) 4190
